Mode change without disassembly - a new concept in soft robotics.
The new fabric-based pneumatic actuator enables changing the operating mode without the need for its disassembly or redesign. Researchers and other institutions have designed a system that uses limiting modules attached with buttons on the fabric sleeve. This makes it possible to quickly, tool-free, and repeatedly switch between four modes: isotropic expansion, contraction, bending, and twisting.
In experiments, a maximum bending angle of approximately 60 degrees was achieved at a pressure of 24 kPa, as well as a twisting angle of nearly 90 degrees. It is worth emphasizing that these results were obtained without the need to change the physical structure of the actuator - it was enough to move the limiting modules to the appropriate places. This opens up new possibilities in the design of soft robots that must perform various tasks without the need to replace the entire device.
For the reader, it is most important to separate confirmed information from predictions about the further development of the described situation. Subsequent conclusions should be based on official actions, publications, and announcements when they become available. This approach allows maintaining the proper context and not attributing current changes with effects that the available material has not yet confirmed.
Touch sensor with arbitrary mounting capability.
As part of the system's development, researchers introduced a capacitive touch sensor module that can be mounted anywhere on the surface of the actuator. This sensor exhibits monotonic, force-dependent capacitance increase with low hysteresis of approximately 12%. Studies confirmed stable cyclic responses even under constant load. This means that the sensor can be used to precisely monitor contact with the environment in real time - crucial for tasks such as gripping or manipulating delicate objects.
The advantage of this solution is its flexibility: it does not require special mounting locations or additional structural elements. It can be connected to any point on the actuator, allowing you to adapt the device's functionality to a specific task without changing the actuator itself. This represents an important step forward towards highly adaptable and multifunctional soft robots that can independently adjust to changing working conditions.
Enlarged imageClose zoomPrevious imageApplications and development prospects

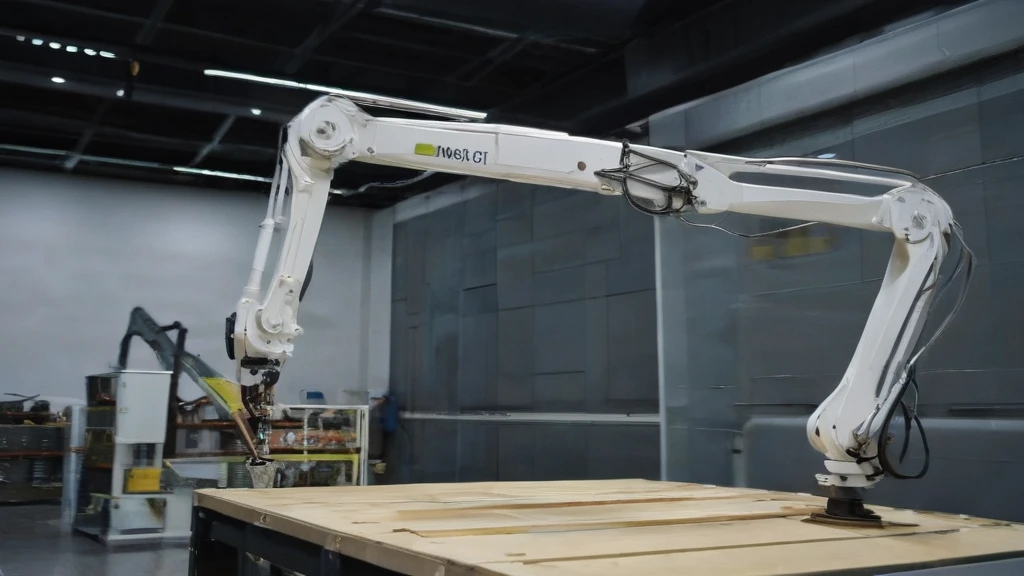

Researchers have built soft robot arms consisting of several such actuators, which have demonstrated the ability to change motion during operation - for example, switching between gripping and pushing without the need to stop or disassemble. This opens up new possibilities in rehabilitation robotics, logistics, and human-machine interaction, where devices with high functional flexibility are needed. For example, such an actuator can be used in therapeutic gloves to assist movement, which automatically adapt to different phases of rehabilitation.
Although the results are promising, it should be remembered that the study concerned laboratory experiments. There is no information about long-term use, resistance to damage, or scalability of the system in larger structures. In addition, no data was provided on material consumption or the durability of button-fastened modules after many cycles. These aspects remain for further analysis and may affect the practical implementation of the technology in real applications.
Significance for the future of soft robotics
The new concept of an actuator with switchable operating modes is a significant step forward in the development of soft robotics. Traditional pneumatic actuators are usually designed for one specific mode of motion, which limits their application. The new solution eliminates this barrier through modularity and ease of assembly. As a result, robots can be more flexible, easier to maintain, and less expensive to manufacture - only one actuator base with different limiting modules is needed.
The technology may find applications not only in industry but also in medicine, education, or home support systems. Its key advantage is the ability to adapt to changing needs without the need to produce new devices. Although this is not yet a commercial implementation, research shows the real potential for developing robotic systems with high adaptability and functional flexibility that can independently adapt to different tasks.
